Haag Streit Diagnostic

Fundus Module 300

The simplicity of the Fundus Module 300 allows integration of non-mydriatic retina imaging as part of the regular slit lamp examination. This can improve practice workflow and save both clinical and patient time.

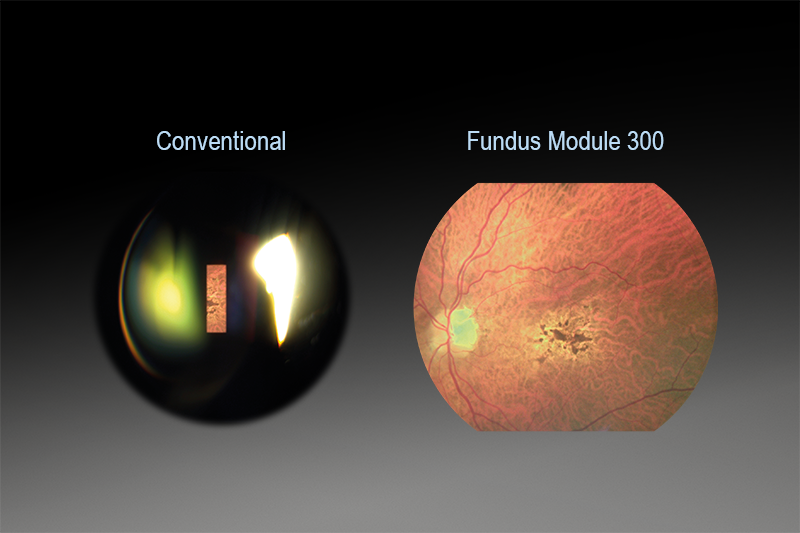

The image quality of the Fundus Module 300 exceeds by far the conventional possibilities on slit lamps it even stands up to comparison with full-blown screening fundus cameras!



  • Field of view 40°

  • Minimum pupil size 3.5 mm

  • Capturing Modes Colour, Redfree, IR

  • Fixation 9 internal LED

  • Focusing Manual

  • Diopter compensation -20 D to +20 D

  • Illumination Infrared LED for aiming, visible white LED for imaging

  • Rechargeable Li-Ion Battery

  • Usage time Approx. 5 h with full battery when connected to slit lamp via USB

  • Display 3.97”, 800 x 480 pixels

  • Display 3.97”, 800 x 480 pixels

  • Camera interface USB 3.0

  • Software EyeSuite Imaging

  • EMR interfaces EyeSuite script language, DICOM (SCU), GDT

  • Operating system Microsoft Windows 7, Windows 8.1, Windows 10

  • Compatibility Haag-Streit slit lamps: BQ 900, BP 900, BI 900 and BM 900

  • Image sensor CMOS, 5 MP

  • Image resolution 1536 x 1152 pixels
